Power supply
Three-phase voltage from 220V to 690V, 50Hz or 60Hz.
Polarity
4 poles.
Centrifugal force
The maximum centrifugal force of this series is 41 kN, with the force adjustable from 0 to 100% by repositioning the eccentric weights without requiring any tools.
Functioning
Continuous operation (S1) is supported at maximum centrifugal force and electric power.
Mechanical protection
IP65.
Insulation class
Class F (155°C), class H (180°C) on request.
Ambient temperature
From -20°C to +40°C.

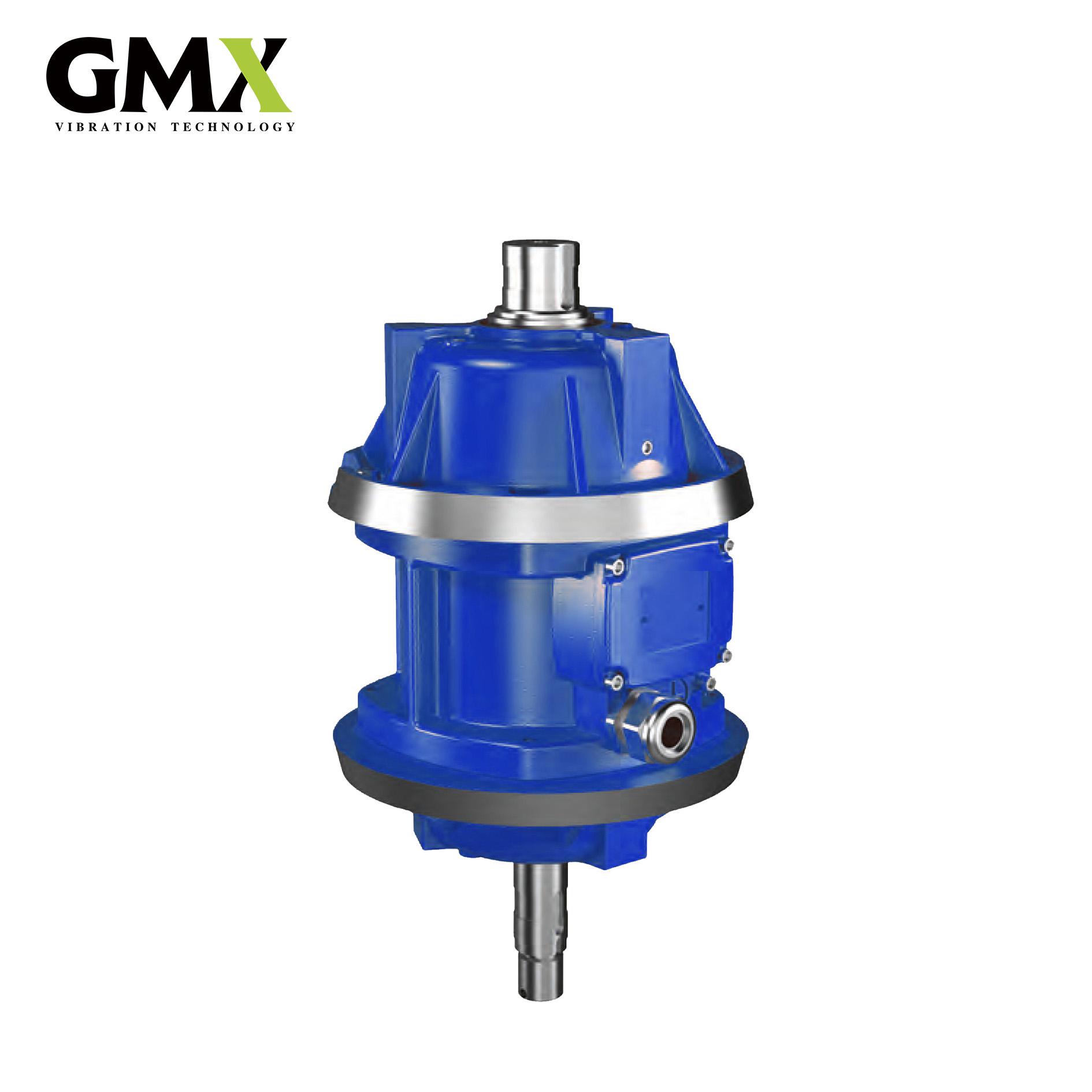

Casing and bearing flange
In spheroidal cast iron for all sizes.
Bearings
Custom-designed single-row cylindrical roller bearings with large clearance effectively balance motor heat dissipation and vibration resistance. These bearings provide a theoretical lifespan of up to 20,000 hours. SKF and NSK bearings are also available upon request.
Lubrication
All vibrators are pre-lubricated at the factory and require no additional lubrication at start-up.
Windings
Special windings are designed for low energy consumption and exceptionally high tightening torque, enabling the motors to accelerate rapidly to nominal speed and achieve quick synchronization.

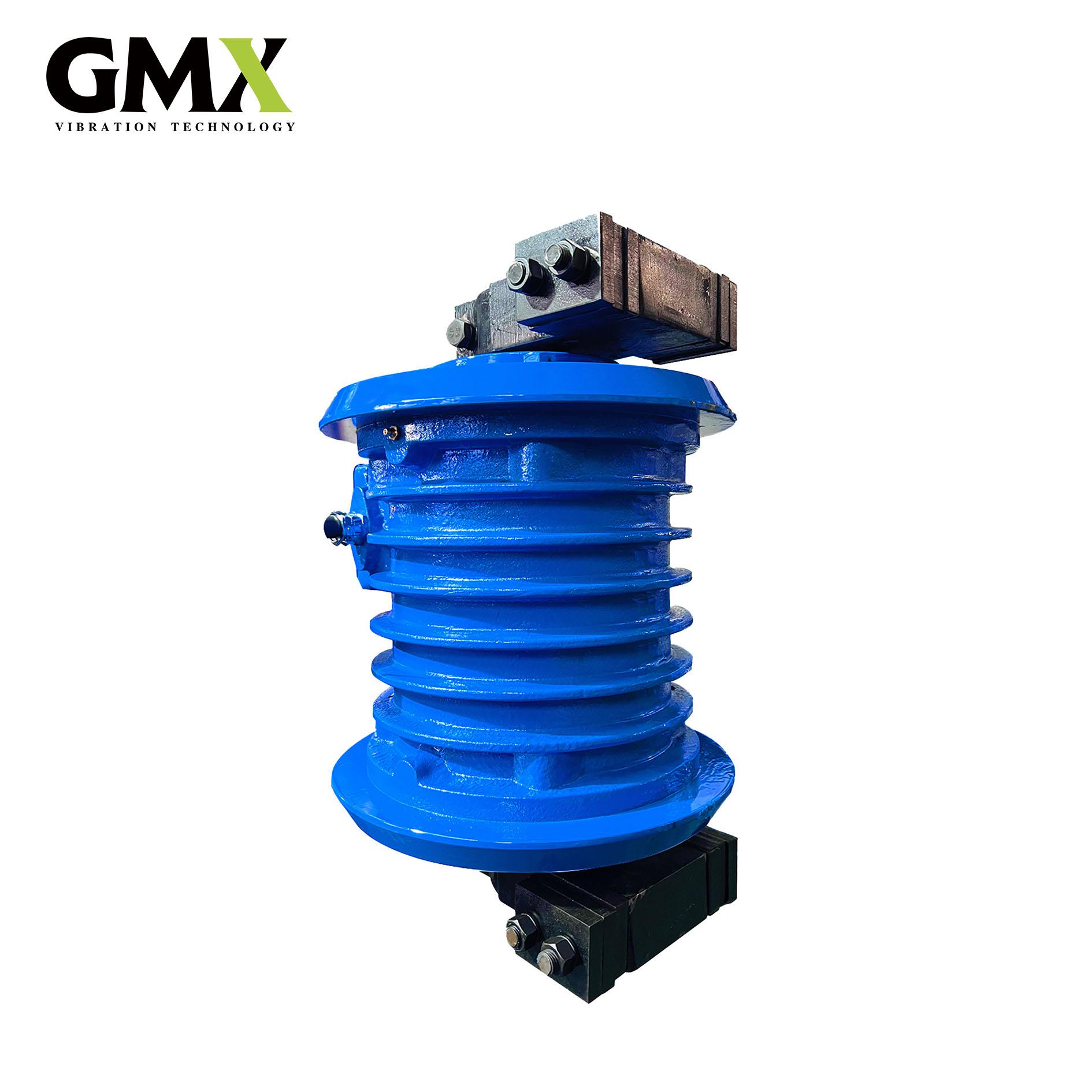

Eccentric weights

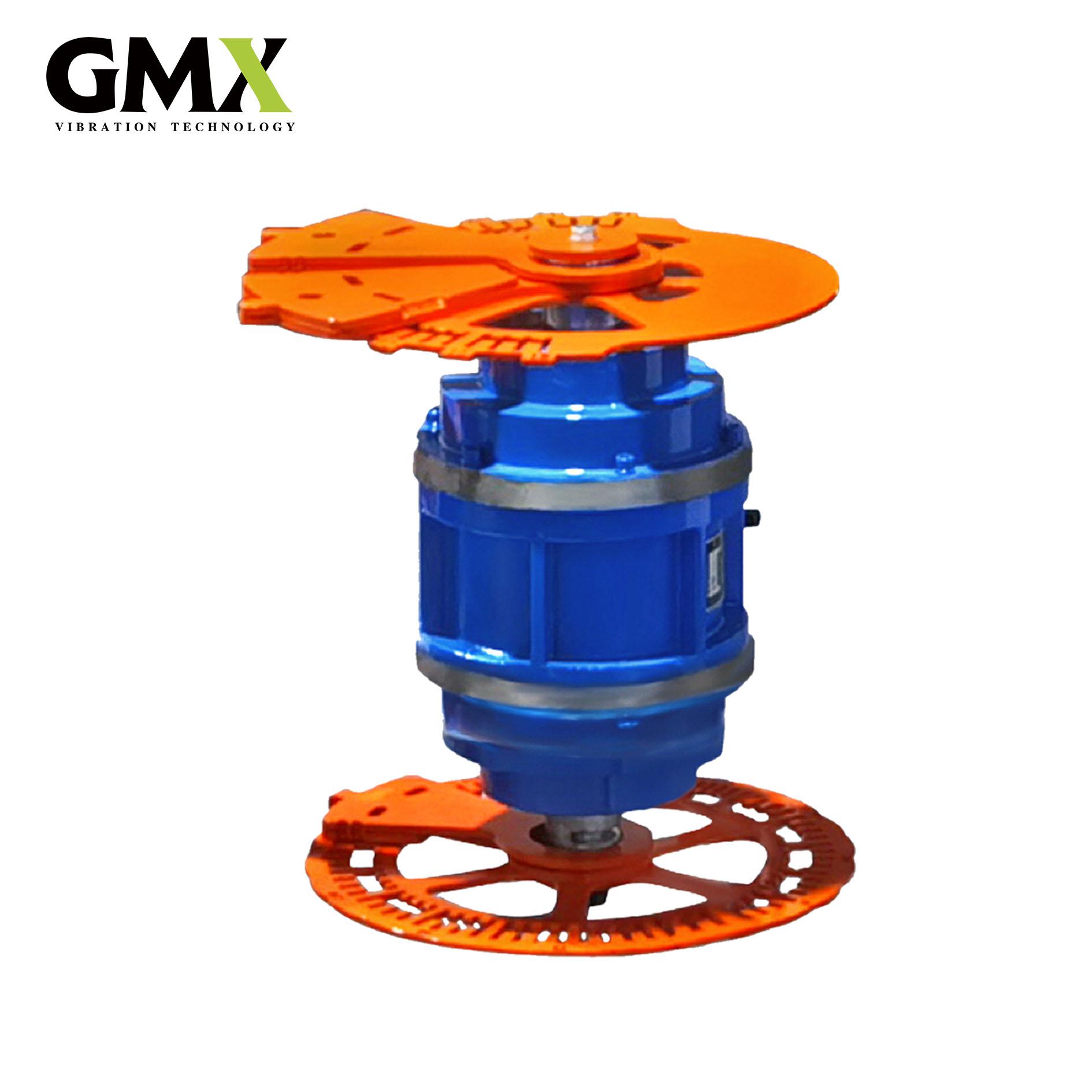

It is typically not included, but we can provide our force wheel upon request. This set of specialized eccentric weights enables tool-free adjustment of the amplitude and screening pattern for circular vibrating screens.
Testing
Each unit undergoes a rigorous dynamic test with eccentric weights before leaving the factory.
Compliance with the applicable European Union directives.
