- High capacity and rapid particle flow
- Ideal for large-scale screening tasks
- Effective prevention of blinding
- Robust and space-saving construction
- Quick screen mesh replacement
- Adjustable flow rate
- Energy-saving and dust-proof design
- Low maintenance requirements

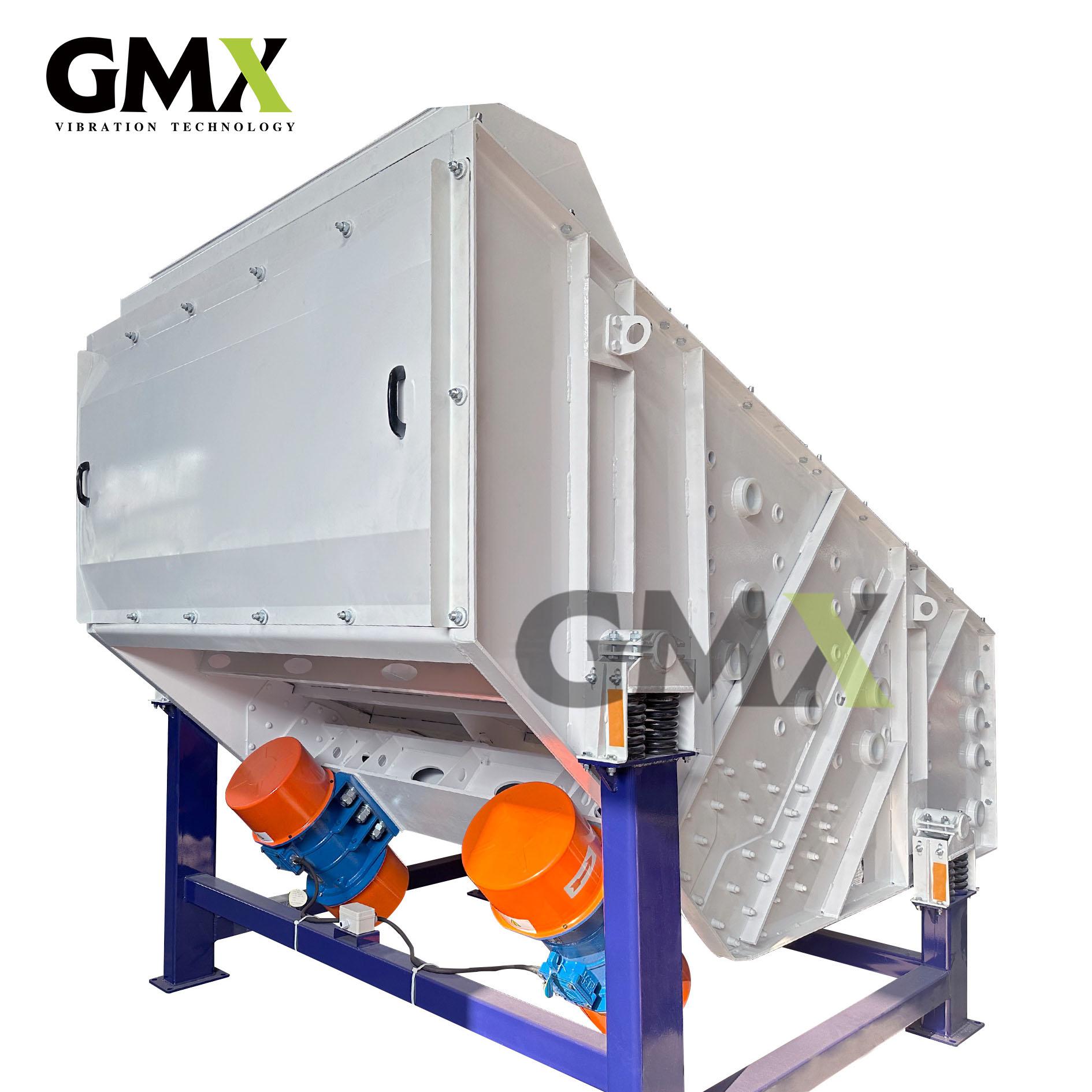

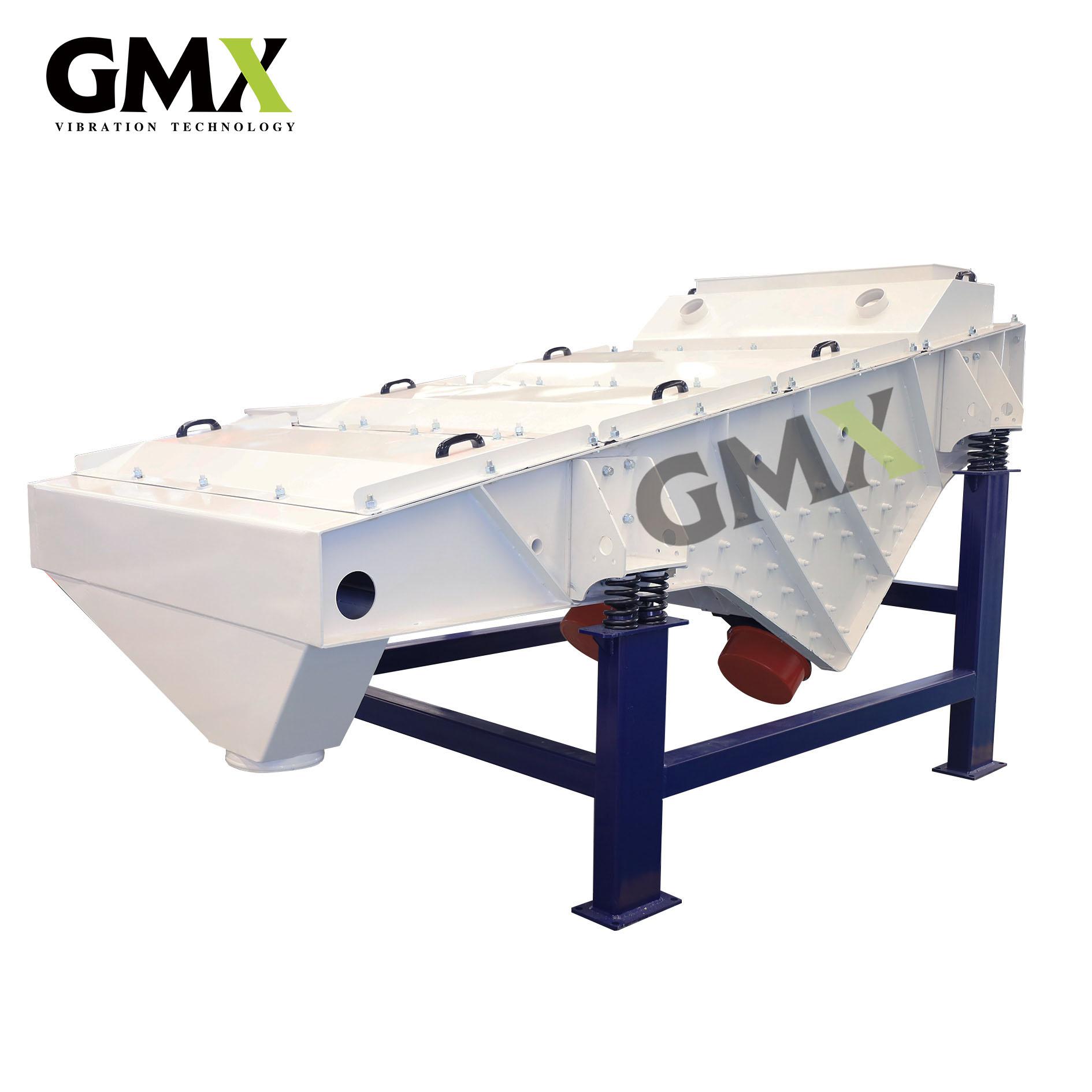

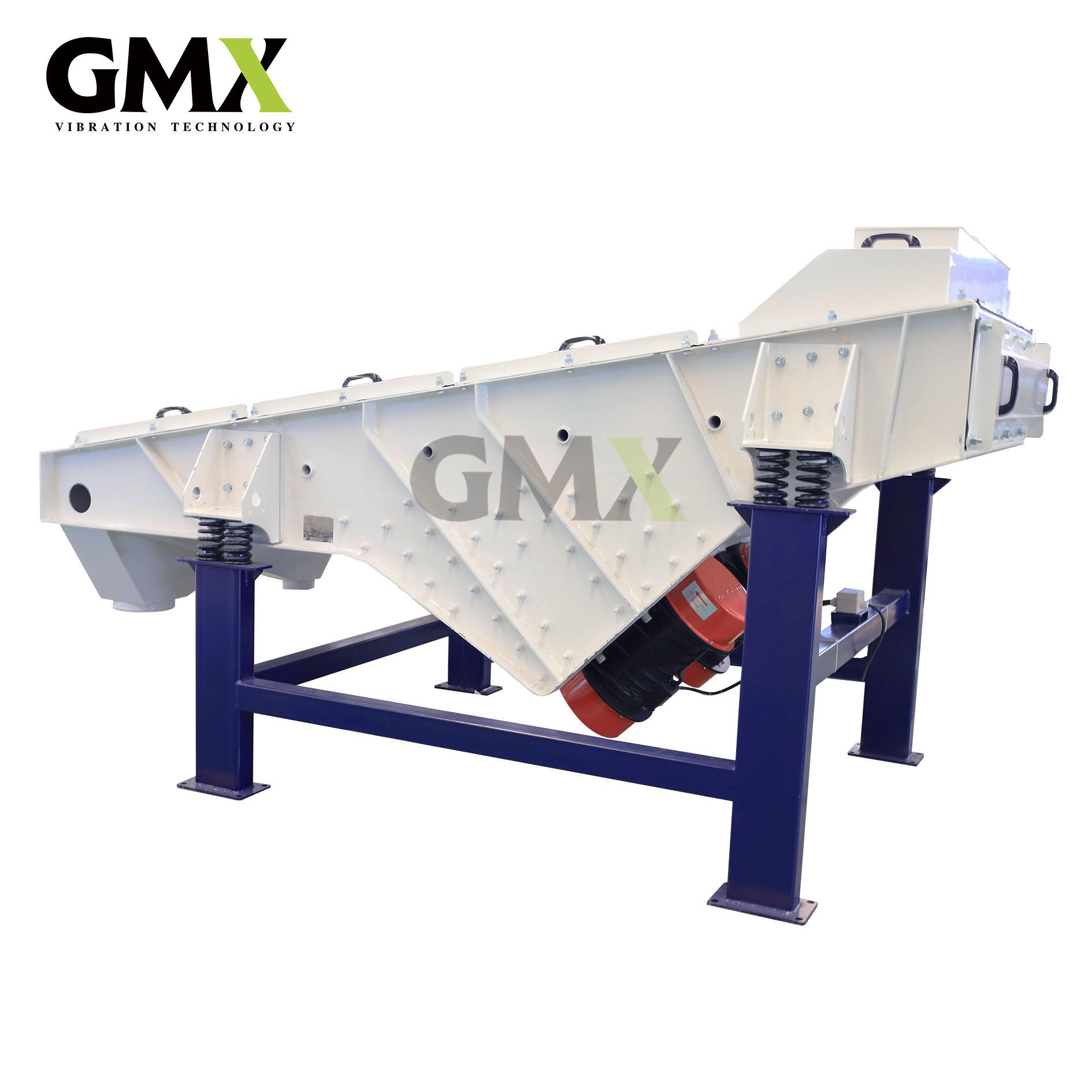

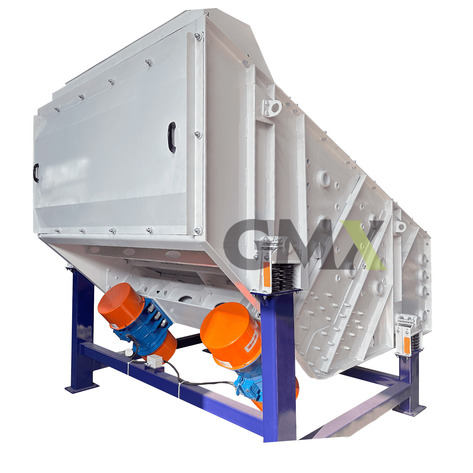

Probability Screen
Probability Screener
PS Series
Main Specifications
| Mesh opening | 200mesh-50mm |
| Max capacity | 200 t/h |
| No. decks | 1-5 |
| Screen Slope | 15-30° |
| Operating speed | 1000 / 1200 rpm (at 50Hz / 60Hz) |
| Amplitude | 5-8 mm |
Products
Contact Now
Overview
Reviews
Descriptions
The PS Series is designed based on the principle of probability screening, using multi-layer screens with steep and varying inclination angles to achieve efficient particle separation.
It is ideal for high-capacity screening tasks involving materials with a high content of coarse particles.
Features & Advantages

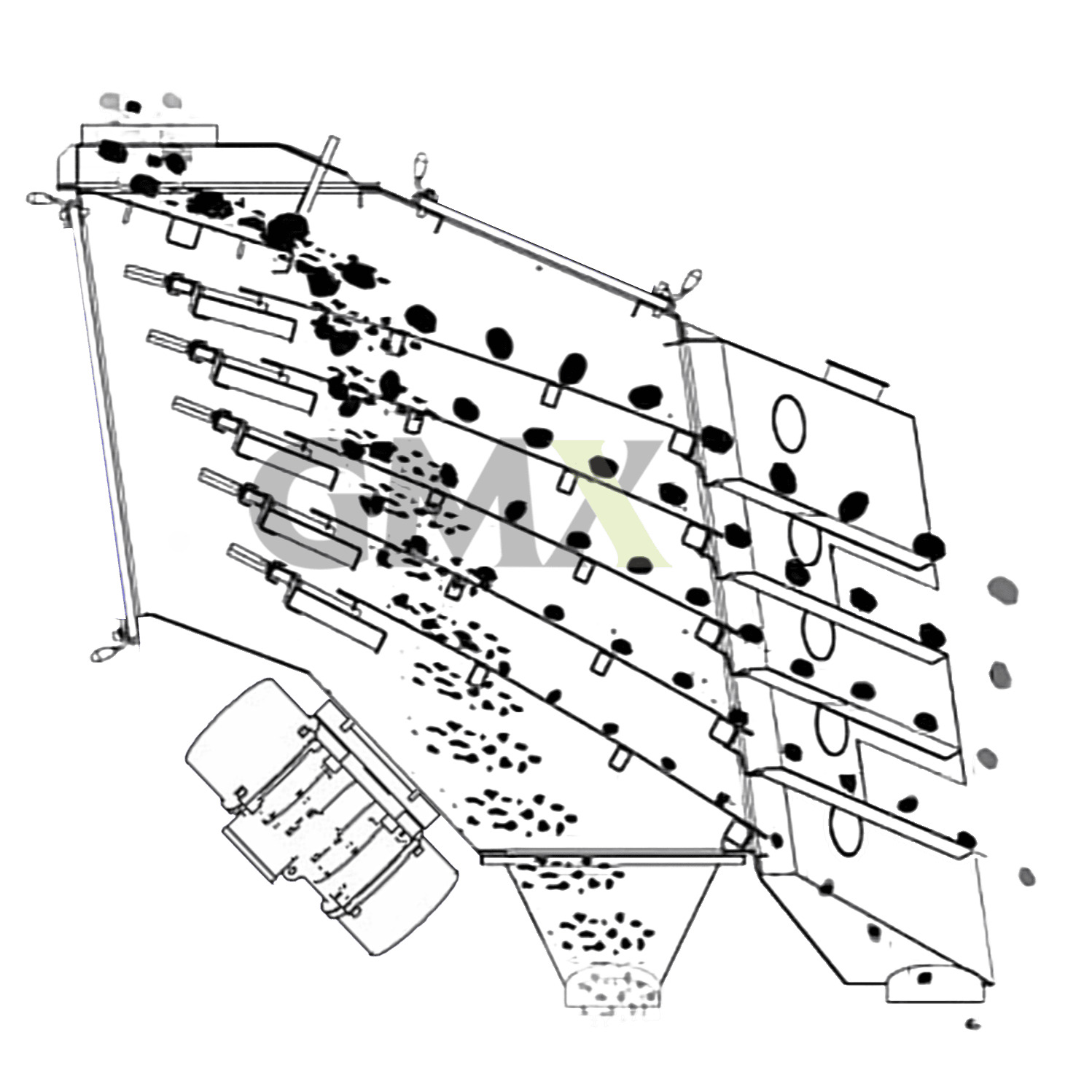

Motion Technology
The PS series can be equipped with up to 5 screen decks with varying inclinations and decreasing mesh sizes downwards.This machine features two powerful vibrator motors mounted on a rigid common base. When the two motors operate at the same frequency and in opposite directions, they automatically synchronize to generate a linear motion.
Fine particles quickly passes through the upper decks, while coarser particles are effectively discharged from the material flow. The inclination of screen panels create an effect similar to smaller mesh sizes, allowing for larger openings than traditional flat screens without sacrificing separation precision.
Specifications
Types
| Types | PS 1225 | PS 1236 | PS 1536 | PS 2036 | PS 2236 | |
|---|---|---|---|---|---|---|
| Mesh surface | m² | 1200×2,500 | 1,200×3,600 | 1,500×3,600 | 2,000×3,600 | 2,200×3,600 |
| Engine performance | kW | 2×1.5 | 2×3 | 2×3 | 2×3.7 | 2×3.7 |
Datasheet
| Mesh openings | 200mesh-50mm |
| Max capacity | 200 t/h |
| No. of decks | 1-5 |
| Screen Slope | 15-30° |
| Operating speed | 1000 / 1200 rpm (at 50Hz / 60Hz) |
| Amplitude | 5-8 mm |
