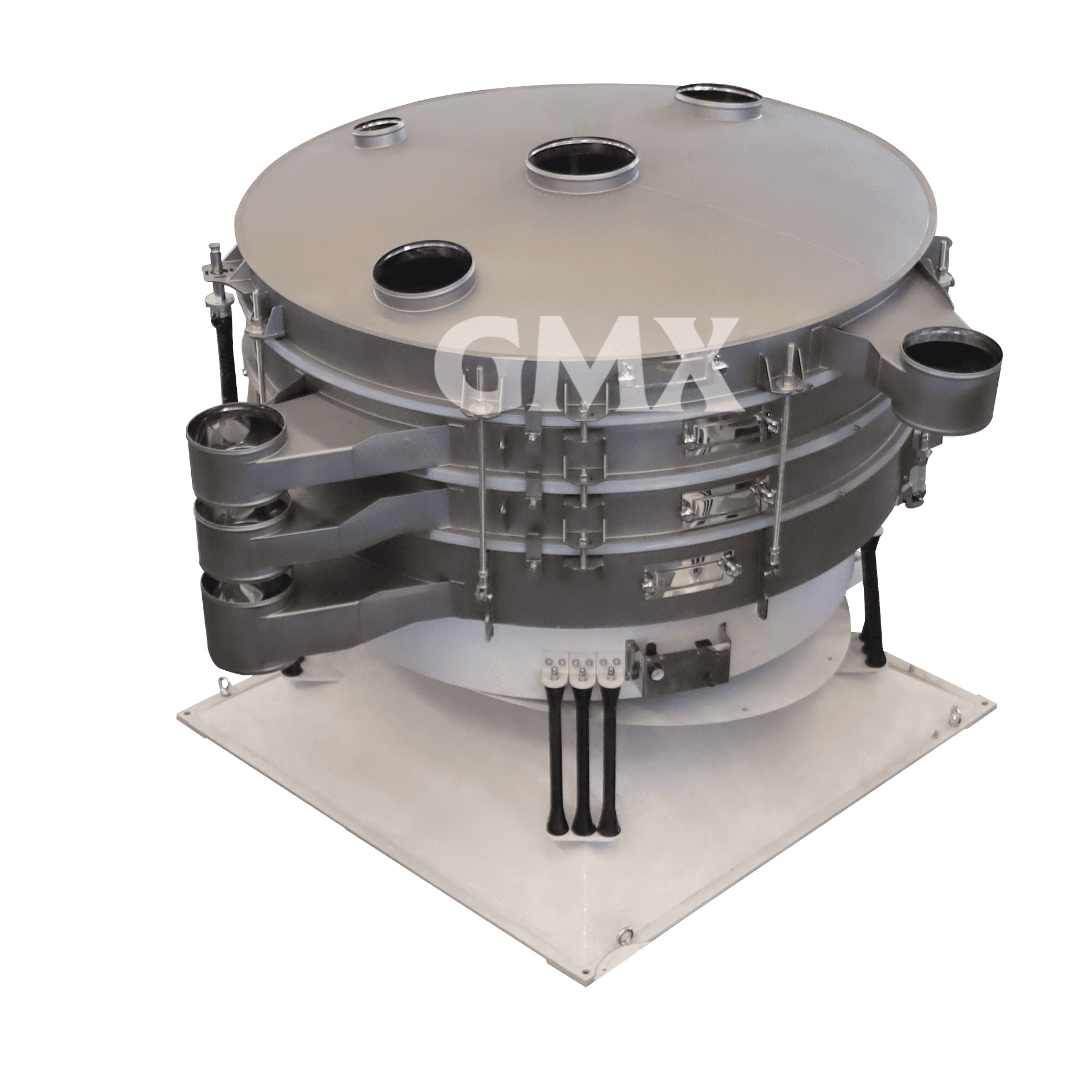

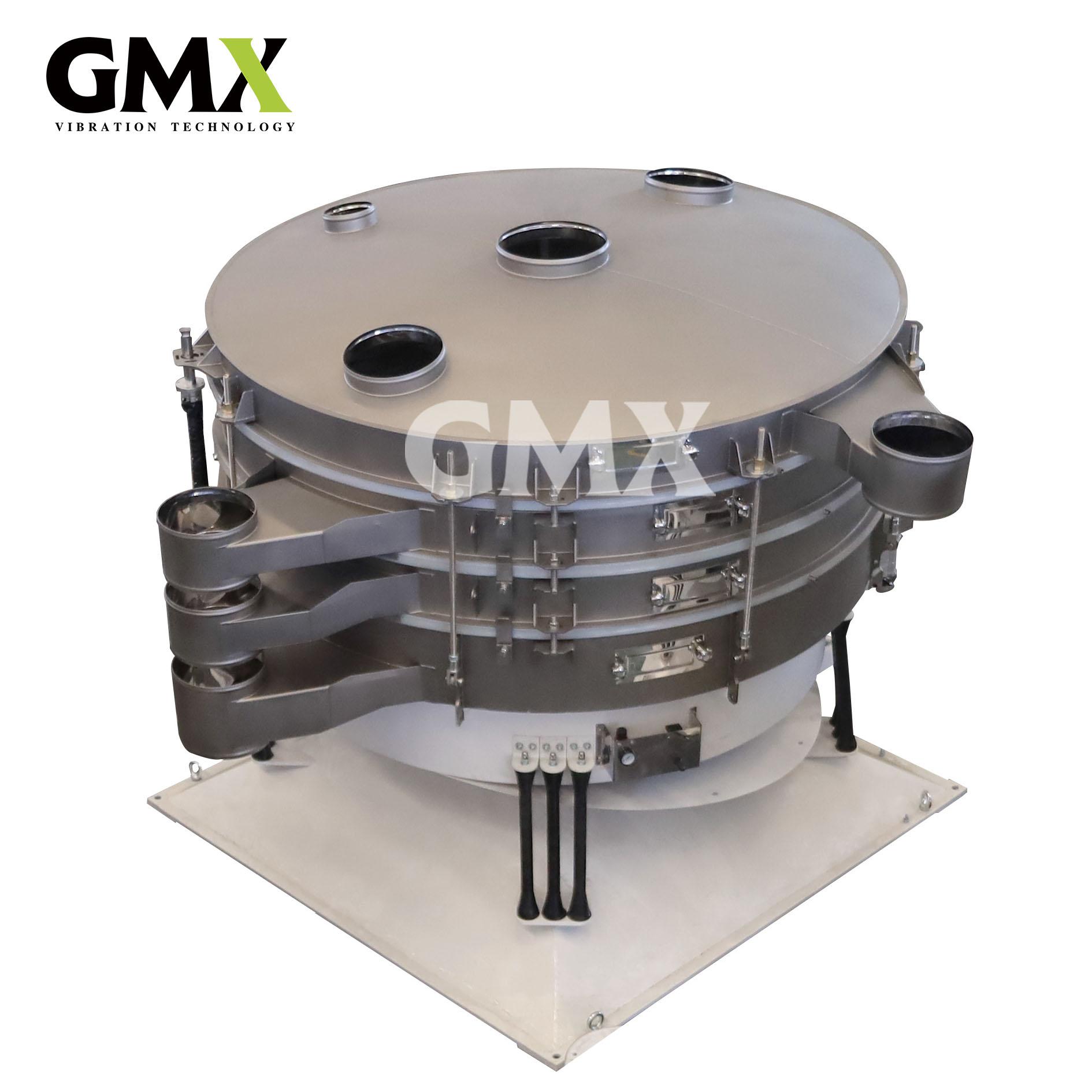

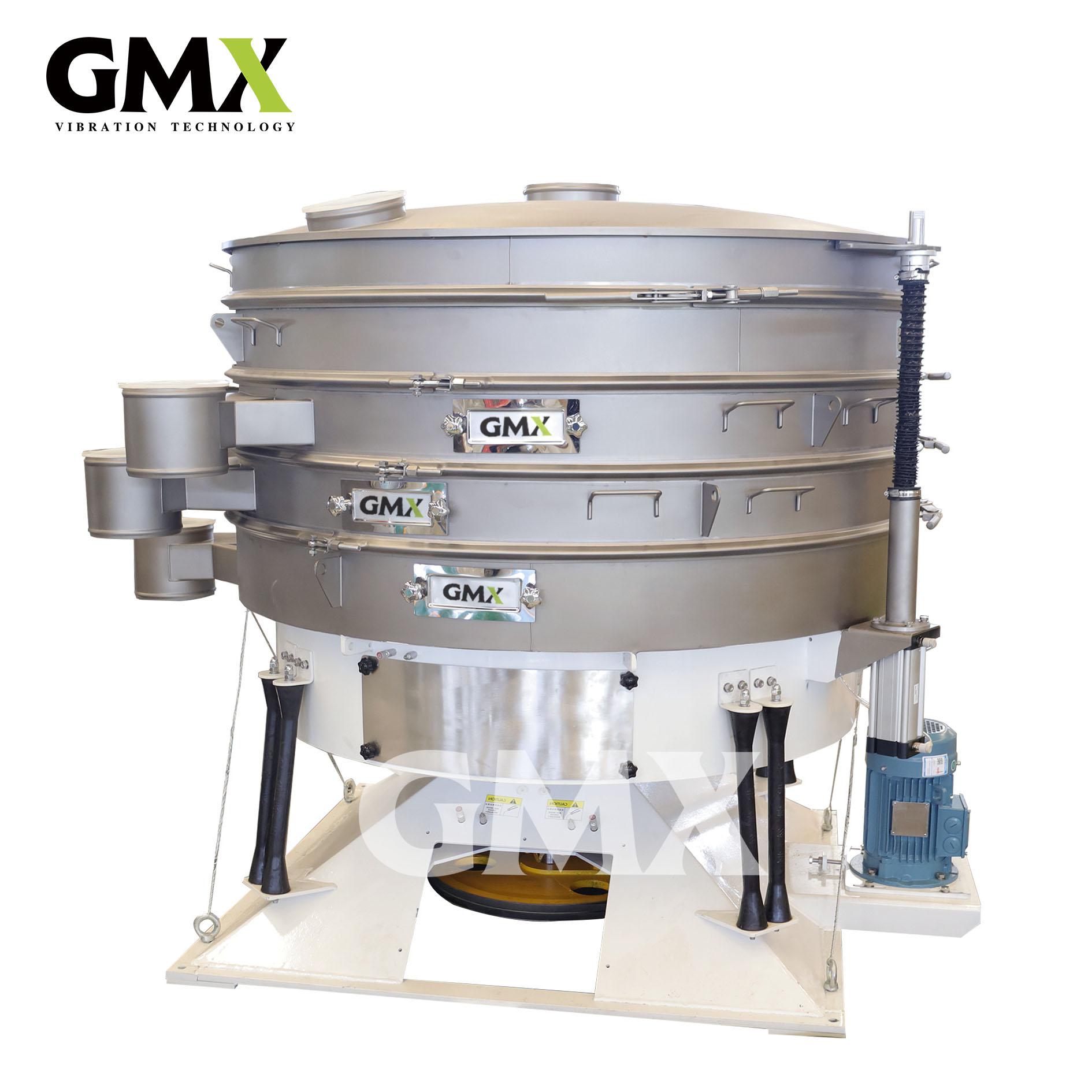

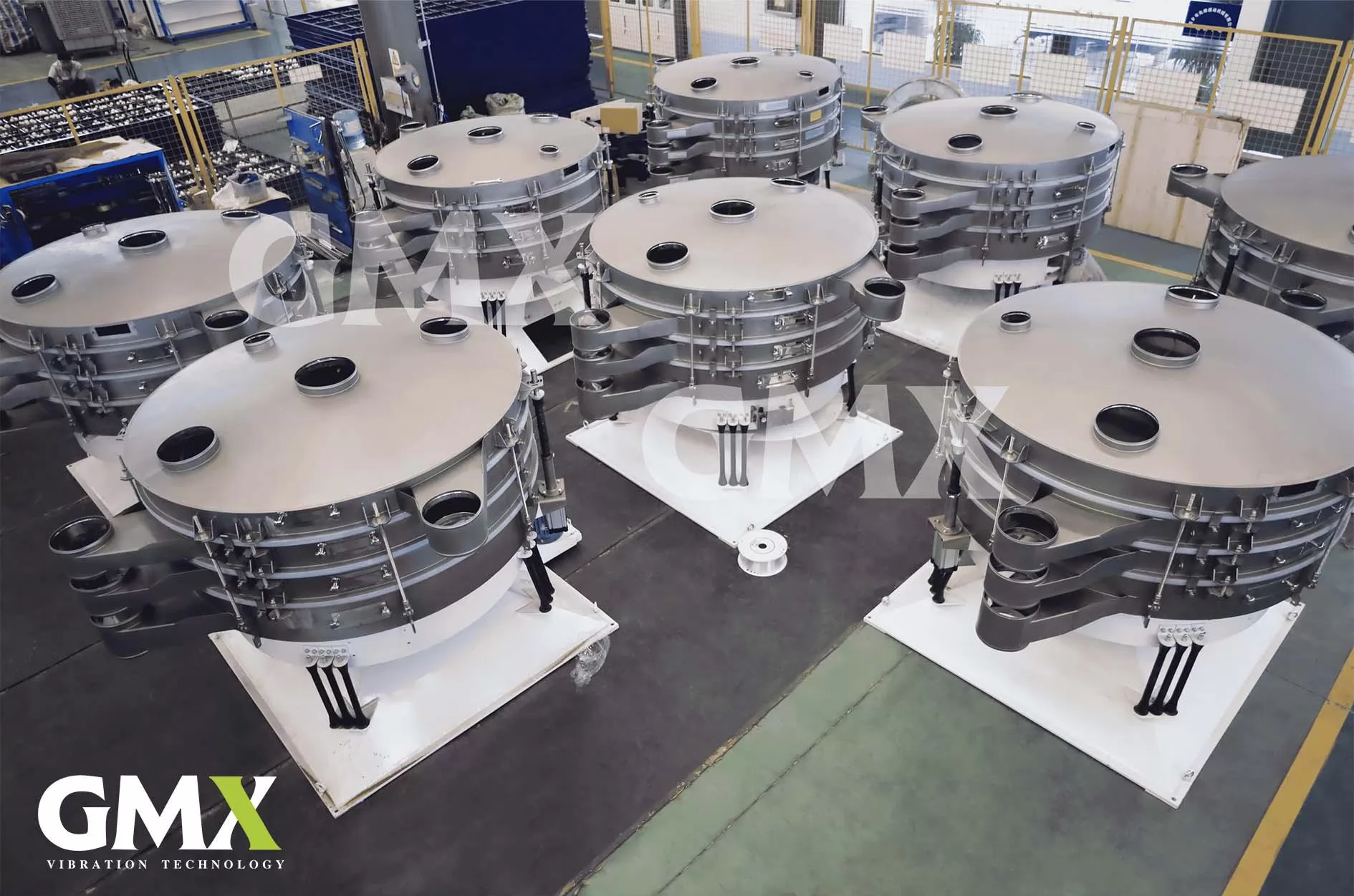

The TSM series employs a unique 3D tumbling motion with slow speed and large amplitude, closely mimicking hand screening. This series is ideal for fine classification of ultra-fine, lightweight, fragile, and other challenging powders and granular materials.
Features & Advantages
High Capacity and Efficiency
Simultaneous classification of up to 6 fraction sizes, achieving screening efficiency of up to 95%.
Low Acceleration
Gentle screening with lower vibration acceleration than traditional vibrating screens, making it ideal for fragile materials while ensuring longer screen parts life and reduced maintenance requirements.
Rapid Screen Exchange
The optional pneumatic deck lifting devices enables rapid and easy screen replacement by a single operator.
Less Blinding
Multiple mesh-cleaning options are available, including bouncing balls, rotating roller brushes, rotating air nozzles and ultrasonic cleaning devices as well as combined cleaning systems.
Multiple Material and Surface Options
Options include powder-coated carbon steel, 304/316L stainless steel with bead-blasted or polished finishes, and contact surfaces coated with specialized materials such as Teflon or nano-ceramics.
3D Tumbling Motion

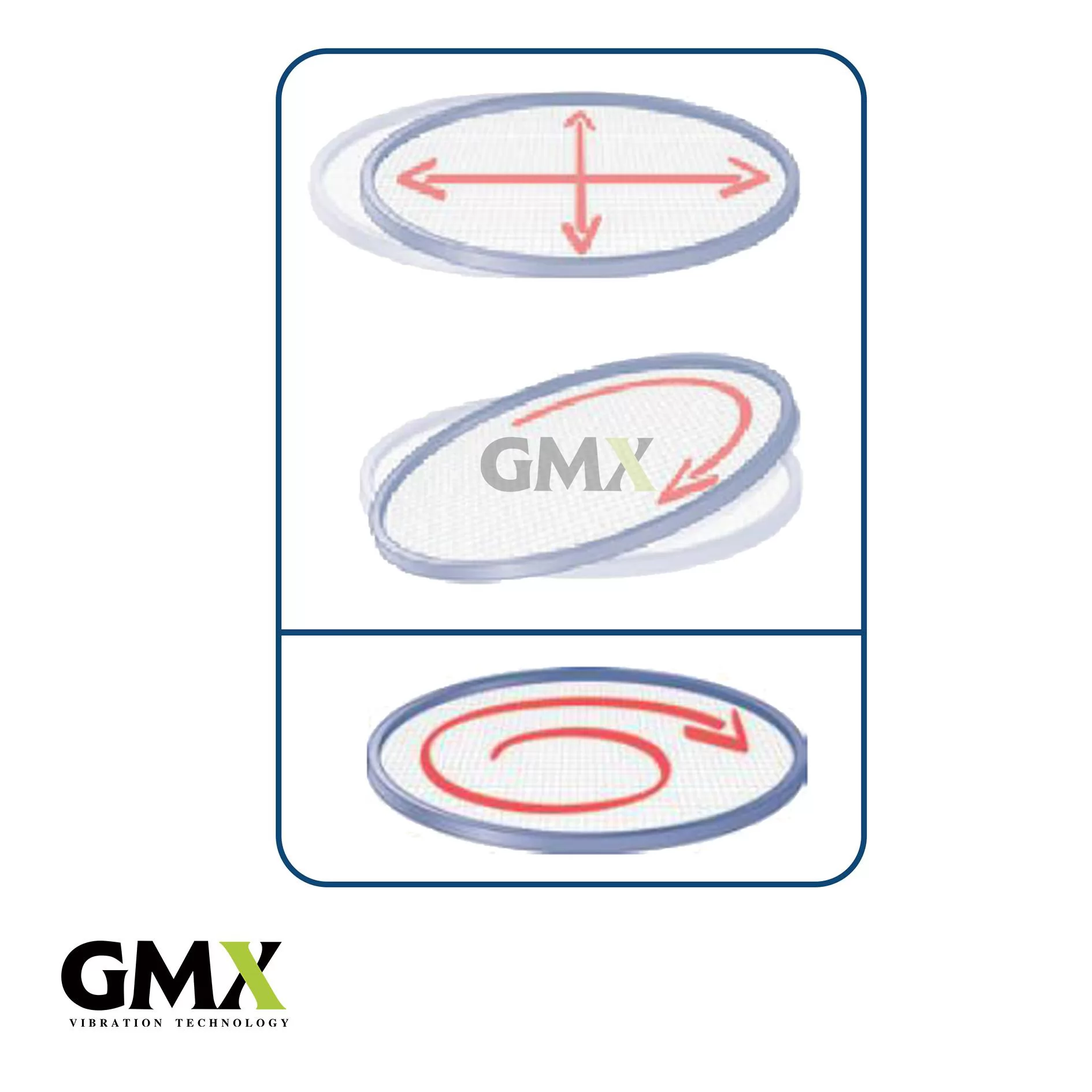

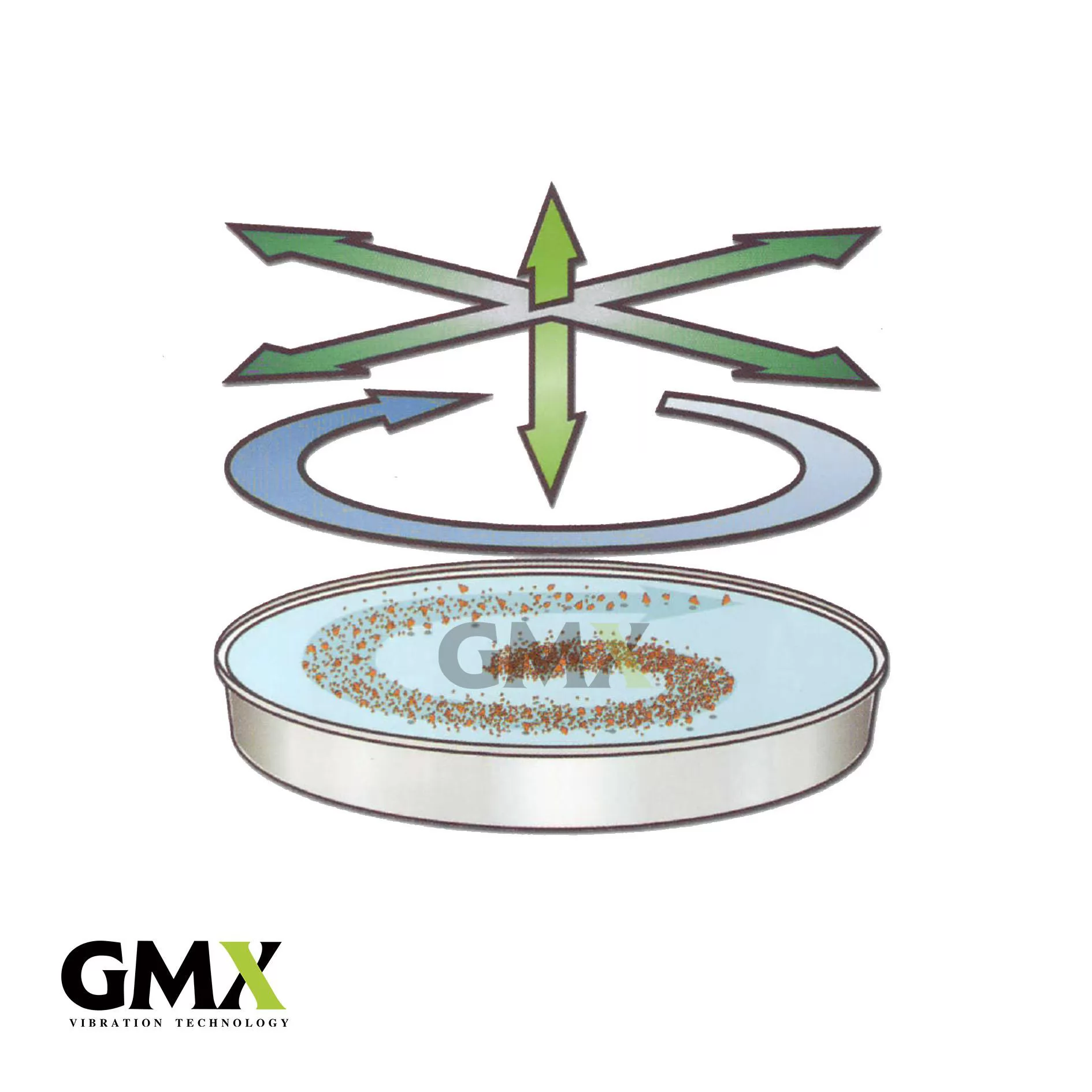

The TSM Series simulates manual shaking by combining radial and tangential inclinations to create a unique 3D tumbling motion.This movement disperses materials evenly from the center to the edges in an involute spiral, allowing finer particles to pass through the mesh at the center.As materials move outward, horizontal and vertical acceleration increase, effectively separating particles close to the mesh opening. The remaining oversized particles are carried to the discharge.
An adjustable deflector on the mesh controls material flow and residence time, further enhancing separation efficiency.This process is repeated across each screen deck for optimal performance.
Specifications
Datasheet
Mesh opening
2-500 mesh
Max capacity
10 t/h
Operating speed
180-280 rpm
No. screen decks
1-5
Materials
304/316L Stainless steel; Carbon steel; Rubber materials FDA compliant
Surface options
Powder coating; Polishing; Bead blasting;
Other specialized coating applied to material contact surfaces
Anti-blocking devices
Bouncing balls; Rotating roller brushes; Rotating air nozzles;
Ultrasonic cleaning devices; Combined cleaning systems
Types
Types
TSM 1200
TSM 1500
TSM 2000
TSM 2600
Mesh surface
m²
1.13
1.85
2.63
5.3
Engine performance
kW
2.2
3
4
7.5
Weight
kg
500-900
860-1,420
1,300-1,940
1,700-2,500

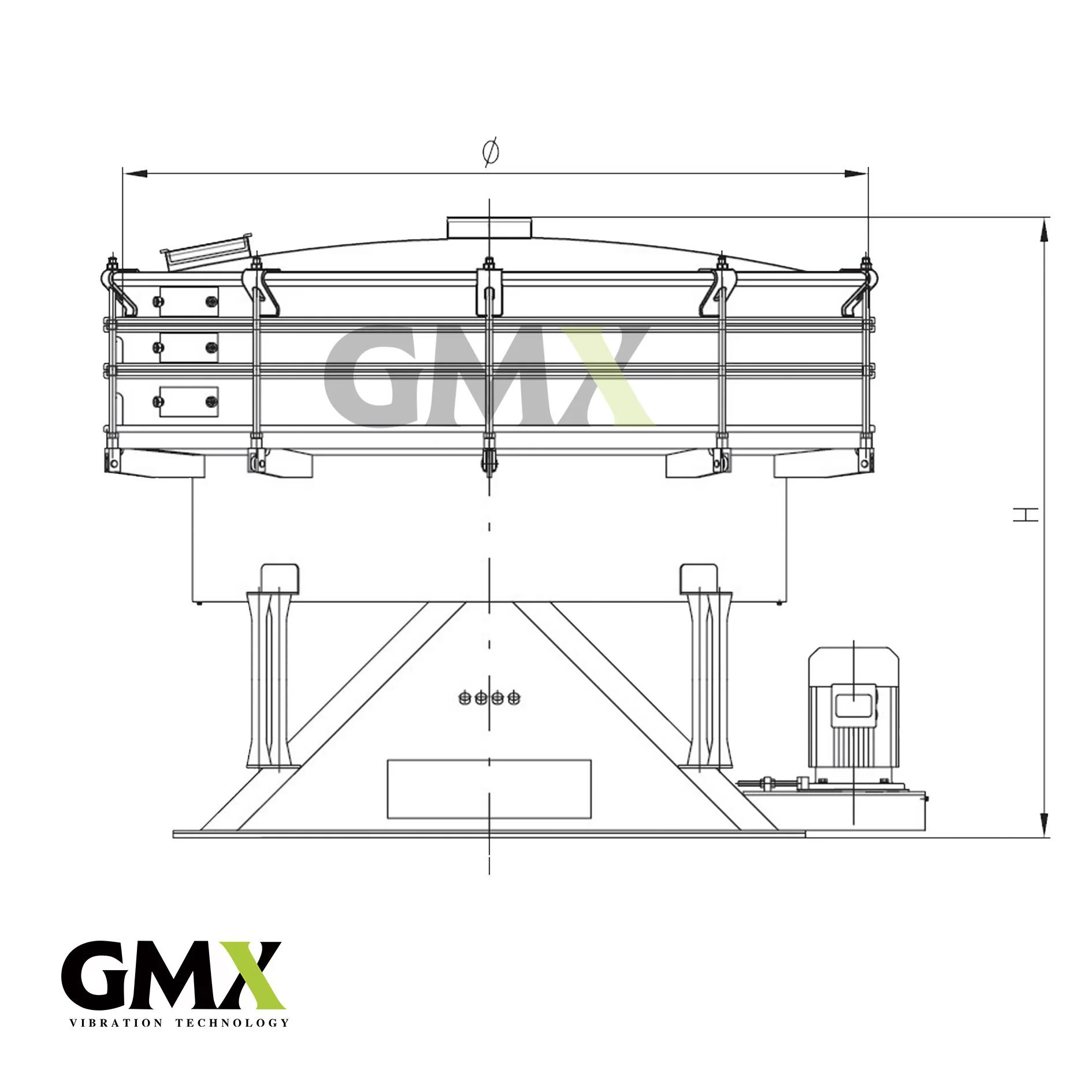

Dimensions
Measurement
Types
TSM 1200
TSM 1500
TSM 2000
TSM 2600
ΦD (Overall diameter)
mm
1,250
1,580
2,080
2,650
A (Base height)
mm
728
716
840
845
H (Overall height)
mm
1-Deck
mm
1,230
1,270
1,425
1,560
2-Deck
mm
1,390
1,430
1,590
1,750
3-Deck
mm
1,550
1,590
1,755
1,940
4-Deck
mm
1,710
1,750
1,920
2,130
5-Deck
mm
1,870
1,910
2,085
2,320
